Case

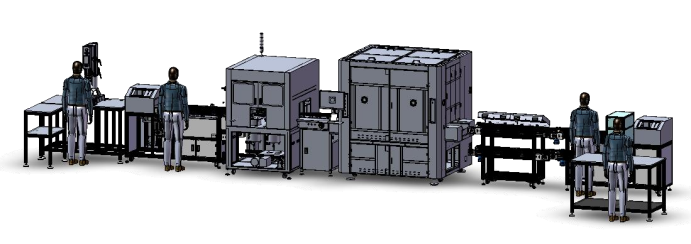

The photovoltaic optimizer automatic assembly line includes automatic bottom shell installation equipment, thermal conductive glue application equipment, automatic PCB board installation equipment, automatic shielding cover installation and screw locking equipment, automatic PCB board screw locking equipment, automatic soldering and testing station, automatic cover installation equipment, automatic unloading equipment, and automatic ultrasonic welding equipment, which are connected in sequence through a production conveyor belt.

Process flow:

Automatic QR code printing → hot soldering support → wire harness screw locking → wire harness soldering → functional testing → outer cover ultrasonic → manual wire winding → automatic glue dispensing → vertical heat curing → product cooling → unloading retesting → packaging
