Can a non-standard acrylic-enclosure feeder actually hit 0.1 mm placement at 2600 UPH without turning the clean zone into a maintenance trap

2026-07-30

A standard vibratory bowl sorts screws; it cannot orient a camera-module bracket, present it under a vision lens, and drop it into a tray at 2600 pieces per hour with the line around it breathing at Class 100. The moment the part is flat-on-one-side, has a polar tab, or cannot survive tumbling, the bowl is out—and the usual replacement is a flexible feeder with a vision table, which most integrators bolt together from three vendor SKUs and then fight for six weeks on EMI, lighting, and belt dust. The trick is to start from the enclosure, not the feeder: a transparent acrylic shell over an aluminum-profile frame is what lets the same machine sit in a dynamic Class 100 cell and let a technician see a jam without breaking the seal. The Non-standard automatic material feeding machine — Transparent Acrylic Aluminum Profile Enclosure UPH 2600 Pcs/H 0.1mm Mounting Accuracy Dynamic Class 100 Optional Customizable Dimension For 3C Electronics New Energy Battery Medical Device Hardware Flexible Feeder OEM ODM Sample Custom Wholesale Direct Industrial Automation Equipment Manufacturer Industrialjx is built around that enclosure-first logic: servo pick-place or vacuum multi-nozzle head, vision correction, tray indexing, all inside a dust-controlled see-through box, dimensions drawn from your cell not a catalogue. But why does acrylic-over-aluminum beat a painted steel cabinet for a 0.1 mm placement job, how does 2600 UPH translate to labor math on a 3-shift line, and what makes Industrialjx—sample/custom/wholesale-direct, complete payment, draw-from-form—a spec-grade non-standard builder rather than a trader relabeling a Suzhou flexible-feeder deck? Below is the full breakdown for 3C sub-assembly leads, lithium-cell pilot-line owners, medical-device process engineers, and U.S. buyers evaluating a China non-standard feeder with English RFQ response.

Why enclosure-first design out-tunes a bolted flexible-feeder deck

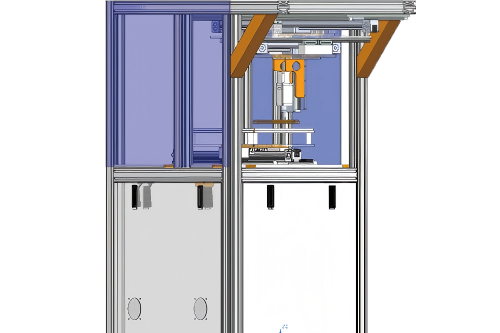

Acrylic + Aluminum Profile Is A Viewport And A Ground, Not A Cosmetic Choice. Painted steel traps static and needs panel removal to see a jam; full polycarbonate bows under heater cycling. The industrialjx page specifies transparent acrylic panels on an aluminum-profile frame: aluminum grounds the servo drives and vision cabinet, acrylic gives a static-dissipative viewport (with conductive gasket) that survives IPA wipe-down and lets an operator spot a mis-fed part at 2 a.m. without opening the cell. For a 0.1 mm placement spec, "see the jam before the robot faults" is downtime insurance, not ergonomics.
0.1 mm Mounting Accuracy Comes From Servo + Vision, Not The Feeder Bowl. A vibratory bowl alone is ±0.5 mm at best. Hitting 0.1 mm means: flexible vibrating tray or step-feeding lane presents the part → top/bottom camera does fly-by inspection (polarity, flip, angle) → servo gantry or SCARA places to a fiducial-corrected tray coordinate. The industrialjx machine bundles this chain in one enclosure, so the 0.1 mm is "system accuracy" (part center to tray pocket), not "feeder accuracy". For a 3C camera-module bracket or a medical sensor cap, that 0.1 mm is the difference between a manual rework station downstream and none.
UPH 2600 = One Operator, Three To Five Machines. 2600 pieces/hour is ~43 parts/minute. A single-head vacuum nozzle at 0.8 s cycle (pick 0.3 + vision 0.2 + place 0.3) lands there; a dual-head interleaved head eats the same number with margin. On a 3-shift line, 2600 UPH replaces ~2.5 manual handlers per machine; the page's own sibling copy ("one person manages 3–5 machines") is the labor math buyers under-price. For a lithium-cell auxiliary-part line (terminal insulator, adhesive tab) where the cell itself moves on a separate conveyor, the feeder only has to present the small part—2600 UPH is comfortable, not heroic.
Dynamic Class 100 Optional = Same Frame, HEPA Top, No Retool. Static cleanrooms are built into the room; dynamic Class 100 means the machine holds ≤100 particles/ft³ ≥0.5 µm at the work zone while running. Making it optional matters: a hardware fastener line does not pay for HEPA; a 3C lens-ring line or a medical drip-component line does. Industrialjx keeps the aluminum frame identical and swaps the acrylic lid for a HEPA-topped version with sealed cable glands—so the quotation branches on clean class, not on a second mechanical design. That is the non-standard part of "non-standard": not every dimension custom, but the clean option is a config, not a project.
Customizable Dimension + Sample Order Kills The 6-Week Integration Tax. Most flexible-feeder decks ship at a fixed 1200×800 mm footprint; if your cell is 600 mm deep, you lose the aisle. Industrialjx states dimensions customizable and supports order samples, customization, wholesale direct. For a U.S. integrator, that means: send the cell CAD, get a 640×520 mm feeder that bolts to the existing conveyor, with the PLC signals (ready/empty/alarm) mapped to your Modbus—instead of buying a standard deck and building a transition fixture. Sample-order support also means a 1-unit validation run before the 5-unit production order, which is how non-standard automation should enter a qualified line.
Industrialjx As Builder, Not Trader. The page footer (industrialjx.com) runs the product under "Smart Industrial Automation Solutions | 3C, New Energy" and offers sample/custom/wholesale/complete-payment. That is a builder's commercial stack: they cut aluminum, wire the servo, tune the vision, and ship FOB—not a marketplace listing with a "contact supplier" black hole. For an English-RFQ buyer, the form-reply promise ("fill out the form below… we will reply ASAP") plus the parameter transparency (UPH, accuracy, clean class all on the page) is the traceability signal.

Industrialjx / industrialjx.com supply context

From the product node + site header :

Maker: Industrialjx (Smart Industrial Automation Solutions), industrialjx.com
Product class: Non-standard automatic material feeding machine (flexible feeder + vision + servo pick-place, enclosure-integrated)
Enclosure: Transparent acrylic panels on aluminum profile frame, tool-free access
Throughput: UPH 2600 pcs/H (model-dependent, typical single/dual-head)
Accuracy: Mounting/placement 0.1 mm (system accuracy with vision correction)
Cleanliness: Dynamic Class 100 optional (HEPA-top config)
Dimensions: Customizable to cell
Drive: Servo gantry / SCARA + vacuum multi-nozzle or soft gripper, PLC + vision
Materials handled: 3C electronics parts, new-energy battery aux parts, medical device small parts, hardware/fasteners, irregular components
Commercial: Support order samples, customization, wholesale direct, complete payment; custom enquiry via form
URL: https://industrialjx.com/Non-standard-automatic-material-feeding-machine

Key characteristics and application scope

Product Name: Non-standard automatic material feeding machine
Alternate Terms: Industrialjx acrylic enclosure flexible feeder 2600 UPH, 0.1mm placement non-standard SMT-grade feeder, dynamic Class 100 optional custom dimension material feeding machine for 3C and new energy, transparent acrylic aluminum profile automation feeder OEM ODM sample, industrialjx.com non-standard feeding equipment
Device class: Non-standard enclosure-integrated flexible feeding + vision pick-place (not bare vibratory bowl, not CNC bar feeder)
Core Applications:
- 3C electronics — camera-module bracket, connector shell, lens ring, flexible PCB small part; vision polarity check + tray load at 2600 UPH
- New energy battery — terminal insulator, vent cap, adhesive tab, busbar small clip; presents to laser weld or ultrasonic stake cell
- Medical device — sensor cap, micro-needle tray, drip-component; dynamic Class 100 config
- Hardware / fastener aux — screw-and-washer pre-stack, clip orientation; no clean option needed
- Lab / pilot line — sample-order 1-unit feeder tuned to bench conveyor before production scale
Companion logic: Same Industrialjx PO can pull tray loaders, laser marking indexers, functional test handlers, conveyor transfers for a bench-to-line cell.

Application logic by scenario

3C Camera-Module Bracket, 8 M/month: Dual-head vacuum feeder, 0.1 mm placement to tray, top cam checks bracket polar tab, 2600 UPH, acrylic lid no HEPA (back-end not lens). One operator runs 4 machines = replaces 10 handlers. Dimensions 680×540×620 mm to fit between two function testers.
Li-Ion Cylindrical Aux Part (insulator ring): Single-head, ring presented flat from step lane, placed onto cell top before laser weld; 2600 UPH matches 1.5 s weld takt; aluminum frame grounded to weld cell, acrylic door interlocked to light curtain.
Medical Micro-Cap Tray Load: Dynamic Class 100 HEPA-top config, servo gantry 0.1 mm, caps from translucent tube feeder, vision checks burr, trays auto-indexed; validates on 1-unit sample order before 3-unit pharma line.
Hardware Screw+Washer Pre-Stack: No vision, single-head pick two components into nest, 2600 UPH, no clean option, painted-metal variant not needed—acrylic/aluminum kept for visibility; wholesale-direct 6-unit order for fastener line.

Procurement and spec checklist

When specifying Non-standard automatic material feeding machine — Transparent Acrylic Aluminum Profile Enclosure UPH 2600 Pcs/H 0.1mm Mounting Accuracy Dynamic Class 100 Optional Customizable Dimension For 3C Electronics New Energy Battery Medical Device Hardware Flexible Feeder OEM ODM Sample Custom Wholesale Direct Industrial Automation Equipment Manufacturer Industrialjx:

✅ Part geometry — send 3-sample parts + worst-case orientation; confirm flexible tray or lane presentation.

✅ Accuracy — 0.1 mm system placement (vision+fiducial), not feeder-only; ask for Cpk report on 200 pcs.

✅ Throughput — 2600 UPH validated with your part, not catalogue screw; dual-head if cycle <0.8 s needed.

✅ Enclosure — acrylic thickness (5–8 mm), aluminum profile 4040/4080, conductive gasket, interlock method.

✅ Clean class — dynamic Class 100 optional; confirm HEPA top + sealed glands + particle-count method (≥0.5 µm).

✅ Dimension — customizable to cell; supply conveyor height/transfer direction; PLC I/O map (Modbus/TCP).

✅ Vision — top/bottom cam resolution, lighting (coaxial/backlight), polarity/flip/angle logic supplied.

✅ Commercial — sample order 1 pc, customization drawing, wholesale MOQ, FOB/EXW, complete payment terms, form-reply SLA.

Conclusion: The non-standard feeder is an enclosure with a process inside, not a bowl with options

The Non-standard automatic material feeding machine — Transparent Acrylic Aluminum Profile Enclosure UPH 2600 Pcs/H 0.1mm Mounting Accuracy Dynamic Class 100 Optional Customizable Dimension For 3C Electronics New Energy Battery Medical Device Hardware Flexible Feeder OEM ODM Sample Custom Wholesale Direct Industrial Automation Equipment Manufacturer Industrialjx solves the problem a vibratory bowl cannot: it presents an irregular, polar, fragile part under a vision lens, places it to 0.1 mm in a tray at 2600 UPH, inside a see-through aluminum-grounded cell that can be spec'd to dynamic Class 100 without a second mechanical design. Dimensions come from your CAD, not a catalogue; the sample-order path lets a U.S. integrator validate one unit before the production lot; the acrylic-over-aluminum choice is what keeps the clean zone observable and the EMI grounded. Sold by Industrialjx (smart industrial automation, 3C + new energy focus, sample/custom/wholesale-direct, form-reply RFQ), the machine arrives as a cell component with PLC signals mapped, not a deck to integrate. Paired with Industrialjx tray loaders, laser indexers, and test handlers on the same PO, it becomes the feeding layer in a bench-to-line automation cell whose throughput number survives the 3-shift labor audit.
