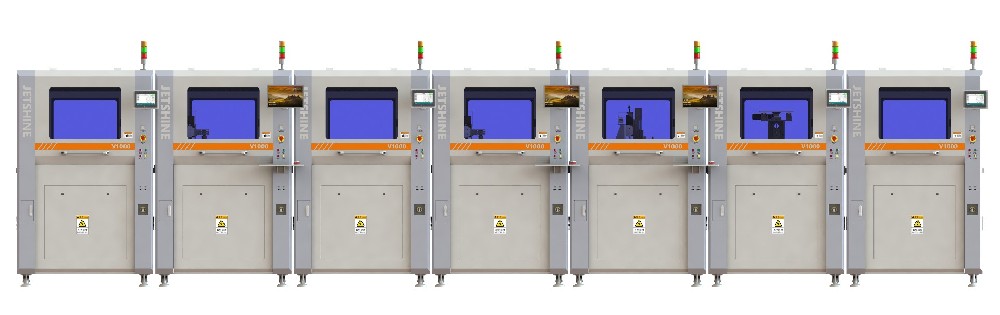

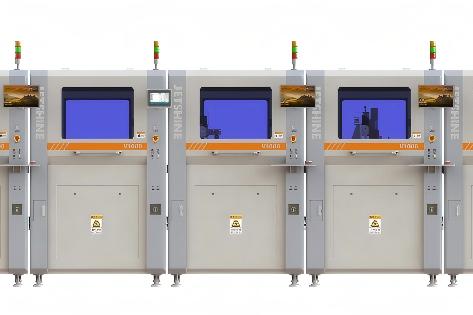

FPC visual inspection

It is mainly used for appearance inspection of flexible printed circuit boards (FPC) and post-SMT (FPCA). It can be directly connected to the tray inspection, and the tray can be shipped directly after the inspection. It can also automatically load and unload materials, which can replace the manual visual inspection and visual inspection mode with low efficiency and high false detection rate, realize machine replacement, reduce production costs, shorten production cycle and ensure product quality. FPC appearance defect inspection: gold finger indentation, foreign matter, gold finger oxidation, component missing/offset, board copper leakage, poor white oil, poor dispensing, TH hole deviation, etc.

In addition to redefining it through a variety of traditional mathematical algorithms (covering grayscale, vector, pixel, color, perimeter, size, area, contour, coordinate, image comparison, barcode, text, etc.), the device also puts AI artificial intelligence technology algorithms into practical use, so that the software has a neural network system similar to the human brain, enabling the software to have recognition, correction and deep learning capabilities similar to the human brain.

1. High detection rate, few false alarm points, only one person is needed to complete the whole line work, greatly saving the labor cost of re-judgment;

2. The equipment is highly versatile, fast switching between different models, direct plate extraction detection, no need to invest in tooling and fixtures, saving a lot of costs;

3. The equipment structure is simple, the machine failure rate is almost zero, the maintenance cost is low, and the equipment utilization rate is high
