Visual screening machine

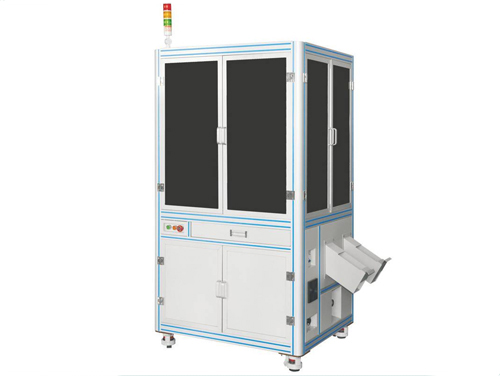

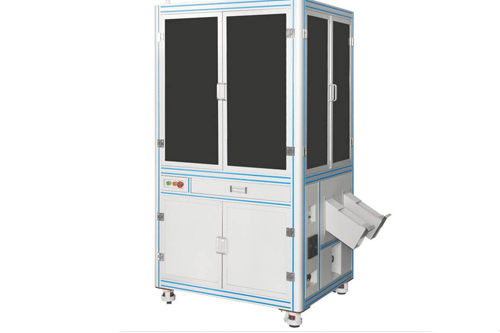

Surface visual defect inspection equipment Vertical double-disc screw and nut inspection machine is a new generation of intelligent screw and nut inspection equipment developed on the basis of a single glass disc screw and nut visual inspection screening machine. It doubles the inspection efficiency on the basis of the original screw and nut inspection machine, reduces the procurement cost by 30%, and reduces the space occupied by the equipment. It is the best equipment to replace manual inspection of screws, nuts, special-shaped hardware, etc. for size and appearance defects. If you need to inspect multiple products of the same specification, the vertical double-disc screw and nut screening inspection machine will be your wisest choice.

Surface visual defect detection equipment double-disc screw and nut detection machine principle:

Using CCD image control system as the main control unit, using displacement and visual sensing technology, according to the screw and nut parameters, automatically completes loading, detection, and identification, and finally automatically selects good and defective products.

Technical features of the surface visual defect detection equipment double-disc screw nut inspection machine:

● Non-standard customization to meet the different needs of users

● Fully automatic CCD visual inspection to reduce manual inspection costs

● High inspection accuracy, the highest inspection accuracy is ±0.005mm

● Many inspection items and a wide inspection range

● Fast inspection speed, twice as fast as the single glass disk screw nut inspection equipment, with the fastest inspection speed of 2400 pieces/min

● High technological content, advanced technology, high precision, good stability, reliable quality and easy operation.

● Smooth and accurate inspection and assembly process without vibration, impact and other adverse phenomena.

● Data display and automatic judgment of "qualified" or "unqualified".

● Adopting German CCD high-resolution camera, the quality reliability performance is good.

● It can be equipped with automatic conveying device and automatic assembly device to complete the automation of feeding and unloading.

Surface visual defect detection equipment The double-disc screw and nut inspection machine can screen objects: screws, nuts, hardware accessories, mobile phone accessories, auto parts, small screws, precision screws, gaskets, special-shaped parts, stamping parts, injection molded parts, galvanized screws, precision hardware, special-shaped hardware, etc. It can be reasonably customized according to the shape and size of the object.

Surface visual defect inspection equipment Li Shuangpan screw and nut inspection machine inspection items:

Cracks, burrs, head text/shape, length, diameter, presence or absence of cut tail, pinhole concentricity/roundness, presence or absence of screw and nut teeth, inner and outer diameters of screw teeth, screw pitch, screw angle, poor thread rolling, bottom shape, tailing, bending, tail cut groove, multi-section height/width/thickness, chamfer/angle, number of teeth, surface characteristics, surface flaws, marks, surface defects, etc.
