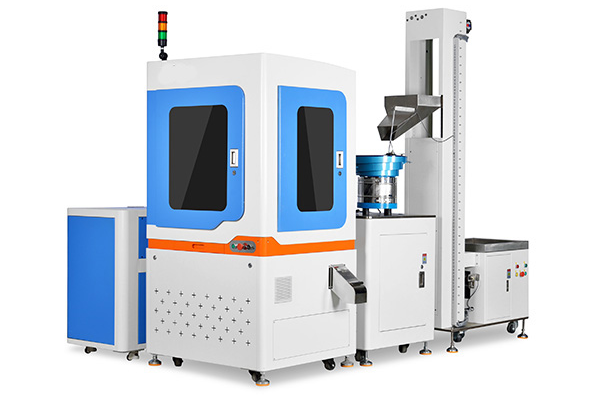

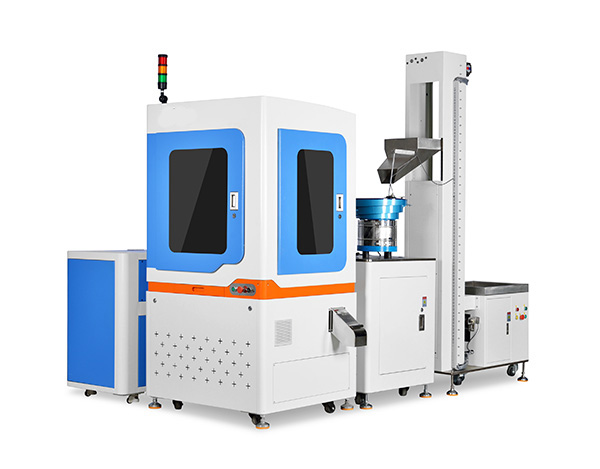

Visual screening machine

Surface visual defect inspection equipment Glass plate screw inspection and screening machine---is a new type of automated screw and nut visual inspection and screening equipment, mainly used to replace manual size inspection, appearance inspection, and defect inspection of various types of screws and nuts. It can automatically complete the loading, inspection, quality judgment, and screening work, greatly improving the inspection accuracy and speed of the appearance size of screws and nuts, and greatly reducing the cost of manual inspection. It can inspect many types of screws and nuts and a wide range of inspection items. It is an ideal screw and nut appearance inspection equipment.

Surface visual defect detection equipment Glass plate screw detection and screening machine principle:

Using CCD image control system as the main control unit, using displacement and visual sensing technology, according to the screw and nut parameters, automatically completes loading, detection, and identification, and finally automatically selects good and defective products.

Surface visual defect detection equipment Glass plate screw detection and screening machine technical features:

● Non-standard customization to meet the different needs of users

● Eliminate automatic CCD visual detection to reduce manual detection costs

● High detection accuracy, the highest detection accuracy is ±0.005mm

● Many detection items and a wide detection range

● Fast detection speed, the fastest detection speed is 1200 pieces/min

● High technological content, advanced technology, high precision, good stability, reliable quality and easy operation.

● Smooth and accurate detection and assembly process, no vibration, impact and other adverse phenomena.

● Data display, automatic judgment of "qualified" or "unqualified".

● Adopting German CCD high-resolution camera, the quality reliability performance is good.

● It can be equipped with automatic conveying device and automatic assembly device to complete the automation of feeding and unloading.

Surface visual defect detection equipment Glass plate screw detection and screening machine can screen objects:

screws, nuts, hardware accessories, mobile phone accessories, auto parts, small screws, precision screws, gaskets, special-shaped parts, stamping parts, injection molded parts, galvanized screws, precision hardware, etc. It can be reasonably customized according to the shape and size of the object.

Surface visual defect inspection equipment Glass plate screw inspection and screening machine Inspection items:

Cracks, burrs, head text/shape, length, diameter, presence or absence of tail cutting, pinhole concentricity/roundness, presence or absence of screw and nut teeth, inner and outer diameters of screw teeth, screw pitch, screw angle, poor thread rolling, bottom shape, tailing, bending, tail cutting groove, multi-section height/width/thickness, chamfer/angle, number of teeth, surface characteristics, surface flaws, marks, surface defects, etc.
