Visual screening machine

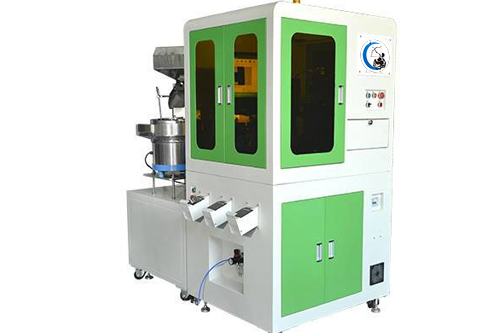

CCD spring dimension inspection machine is a new generation of intelligent spring inspection machine developed on the basis of a single machine. It is mainly used to replace manual inspection of dimensions and precision of various types of springs. It can automatically complete the inspection and quality judgment work at one time, improve the inspection accuracy and speed, and greatly improve the inspection quality. It is an ideal spring dimension inspection equipment.

This machine has automatic assembly function:

It uses CCD image control system as the main control unit, and uses displacement and visual sensing technology to automatically complete the detection process according to the parameters of springs with different performance and specifications; measure, display and finally judge the results, fully guaranteeing the output and quality.

Technical features of CCD spring dimension inspection machine:

● High technological content, advanced technology, high precision, good stability, reliable quality, and easy operation.

● Stable, accurate, without vibration, impact and other undesirable phenomena during the inspection and assembly process.

● Data display, automatic judgment of "qualified" or "unqualified".

● Adopting German CCD high-resolution camera, with good quality reliability and performance.

● Can be equipped with automatic conveying device and automatic assembly device to complete the automation of feeding and unloading.

Working principle of CCD spring dimension inspection machine:

Use a vibration plate, aluminum plate or transmission belt to transfer the product to a glass plate, use the high light transmittance of glass, cooperate with optical hardware facilities and software to inspect the spring to achieve the best inspection effect.

CCD spring dimension inspection machine can screen objects:

Stainless steel compression springs, cylindrical helical springs, hardware accessories springs, galvanized compression lock springs, small springs, precision springs, thin springs, compression springs, torsion springs, tension springs, coil springs, spring springs, scroll springs, etc. It can be reasonably customized according to the size of the object.

CCD spring dimension inspection machine inspection items:

Spring size, spring length, spring inner diameter, spring outer diameter, side height, spring grinding angle, spring grinding roundness, spring rotation angle, concentricity, etc.
